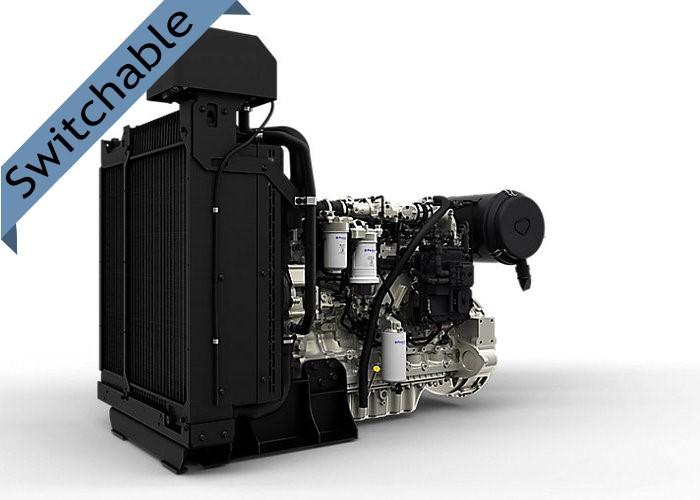

1206A-E70TTAG1 Diesel Engine 200 kVA @ 1500 RPM

Perkins is pleased to announce the natural expansion of the 1200 Series to include a new addition to the ElectropaK range.

The whole engine has been built around the demands of our customers and as such offers a great package with a simple integration design.

Perkins have developed a reputation for designing and building reliable and durable engines suitable for the most demanding applications.

• Number of cylinders : 6 vertical in-line
• Bore and stroke : 105 x 135 mm 4.13 x 5.3 in
• Displacement : 7.01 litres 427.7 in3
• Aspiration : Series turbocharged aftercooled
• Cycle : 4 stroke DI
• Combustion system : Direct injection
• Compression ratio : 15.8:1
• Rotation : Anti-clockwise, viewed on flywheel
• Total lubricating capacity : 13-16 litres 3.4-4.2 US gal
• Cooling system : Liquid
• Total coolant capacity : 25 litres 6.6 US gal

Dependable power

• World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life
• Series turbocharging with smart wastegate available on all ratings
• A high power density product that combine dependable power and high efficiency at the same time. Driving lower cost of ownership along with better performance

Flexibility

• Tropical radiator is supplied as standard

• Fuel consumption optimized prime power and continuous running applications. No additional fluids or additives are required which lowers operating costs
• Hydraulic tappets, multi-vee belts and 500-hour oil change intervals enable low‑cost maintenance
• Perkins Platinum Protection – there is also an option to buy a Perkins Platinum Protection policy to cover you beyond the standard warranty period.

Local support, global coverage

• Perkins recognise that the customer relationship is important to machine manufacturers and we can offer a range of flexible solutions to help provide appropriate support, either to the OEM’s network or directly to the machine customer
• Perkins information systems enable our distributors to quickly diagnose engine faults and identify the right parts. The Perkins logistics operation is able to dispatch more than 45,000 different parts from stock, reaching the customer within 24 hours

Air inlet

• Standard air cleaners

Control system

• Full electronic control system
• All connectors and wiring looms waterproof and designed to withstand harsh environments
• Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines

Cooling system

• Tropical radiator as standard ensures optimal cooling performances all year round in any state
• 50:50 water glycol mix

Flywheels and flywheel housing

• SAE2 flywheel housing

Fuel and fuel system

• Electronic high pressure common rail
• Innovative filter design – ensures maximum protection of the engine
• Flat bottomed, isolated, aluminium sump
